TG30

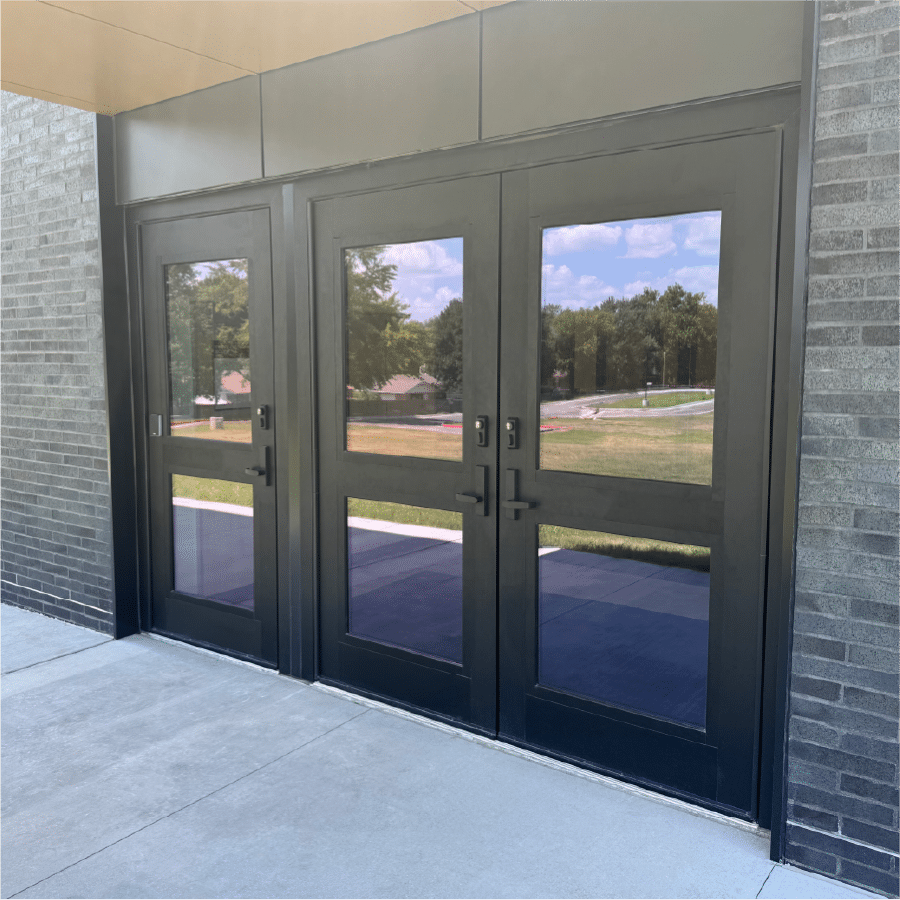

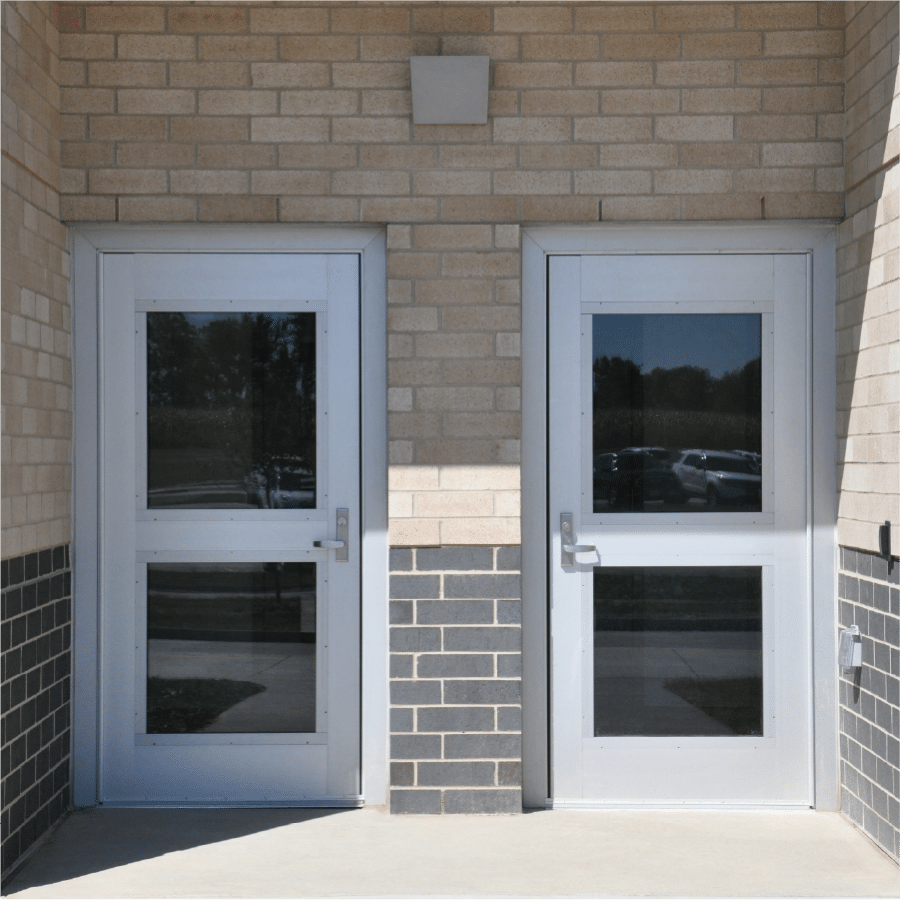

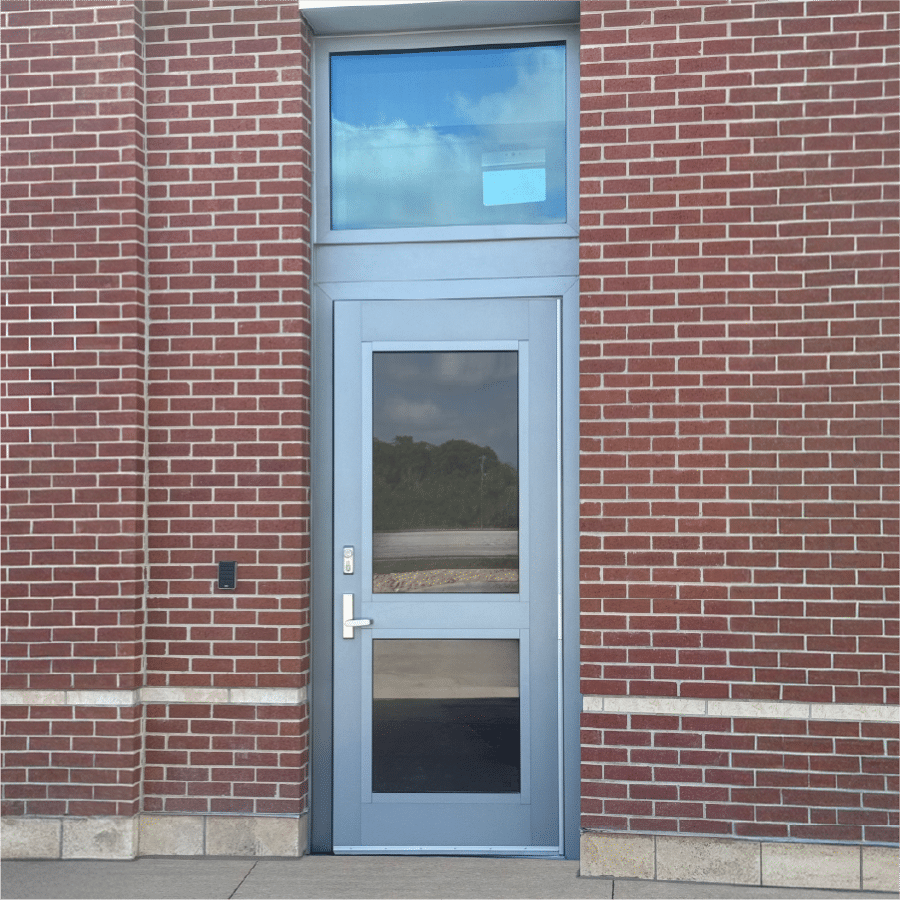

TG30 glazing was tested in the StormDefend TTH350 Architectural Aluminum Door System which is certified, listed, and labeled for use in tornado and hurricane safe rooms/storm shelters meeting FEMA P361-21, ICC500-2020, and ICC500-2023 standards.
Innovative glazing solution for tornado and hurricane protection.
TECHNICAL DATA
- Dimensional Tolerance: +/-.250″
- Maximum sheet size: 60″ x 96″
- Light transmittance: 65%
- U-Value: .58
- Solar Heat Gain Coefficient: .67
- Shading Coefficient: .78
OPTIONS
- Tinted Glazing
- Translucent Interlayers
INSTALLATION
- Glazing to be installed in accordance with the guidelines set forth in the current edition of the GANA Glazing and Sealant Manuals.
WARRANTY (SHORT VERSION)
- Global Security Glazing warrants TG30 glass-clad polycarbonate against defects in material and workmanship resulting in edge separation or delamination for a period of five (5) years from date of manufacture. (See Warranty Sheet for complete warranty information and specifications).

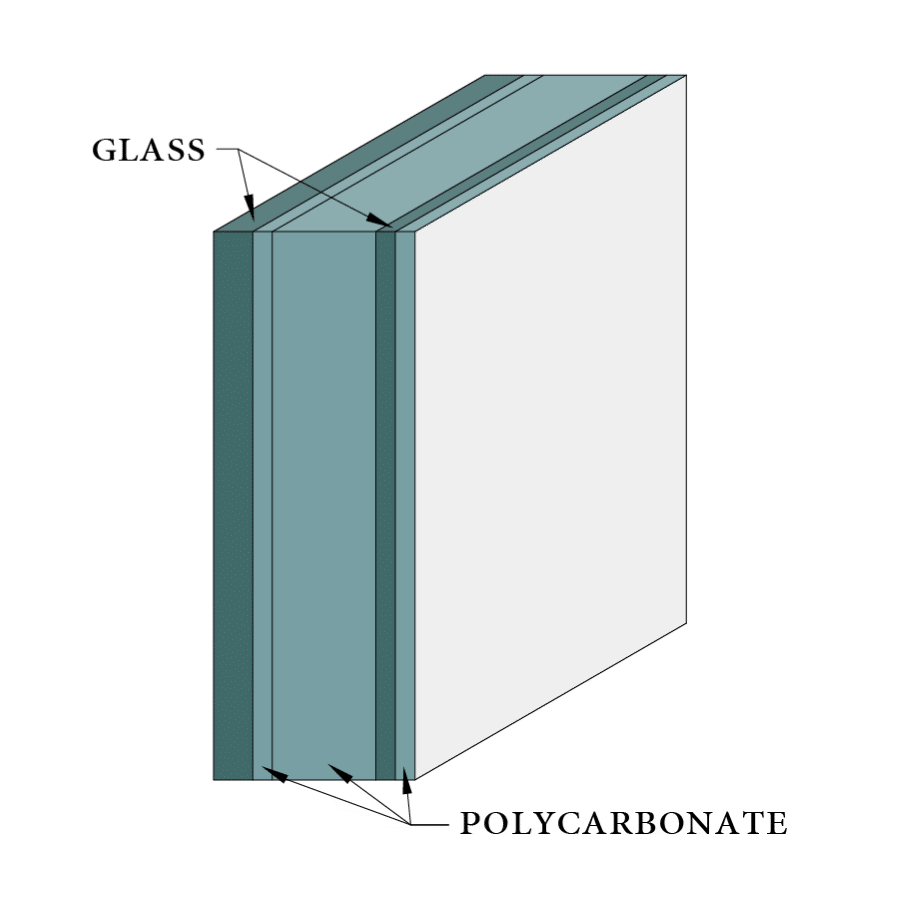

Material
Glass-Clad Polycarbonate
Nominal Thickness
1.286″
Weight
10.84 lbs/sq ft
UL 752 Ballistic Rating
