PE Package PasserCLICK TO ENLARGE

Details

Rating: UL 752 Level 1-3

Innovative Counter Line Solutions for Ballistic Protection

Product Description

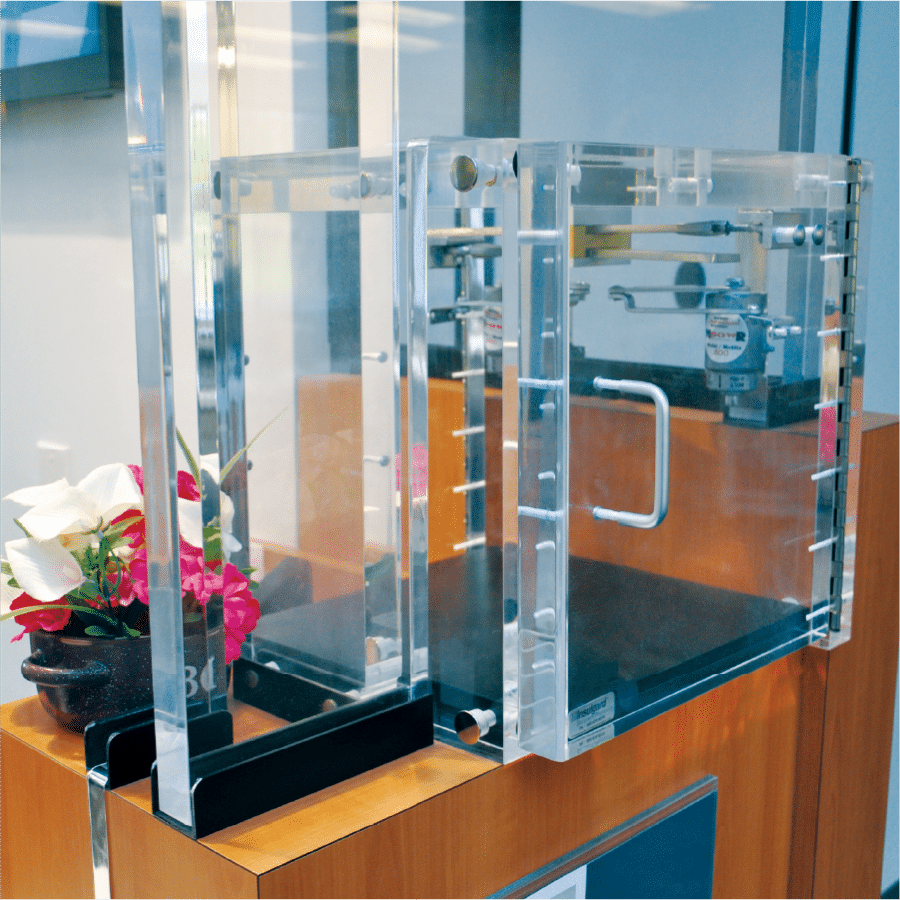

The PE Package Passer is designed to help defeat ballistic assaults from Levels 1, 2 and 3 handguns based on UL752 standards. Interlocking mechanisms keep one door locked at all times while allowing packages to be passed through the full vision barrier without a breach of security. When installed within a glazed window, the full vision unit will not obstruct the windows line of sight.

Standard Sizes

OUTSIDE DIMENSIONS

  • Standard: 14″ W x 14″ H x 14″ D
  • Large: 16″ W x 14″ H x 14″ D
  • Mazimum OD Size: 18″ W x 18″ H x 18″ D

Features

  • Level 1, 2 and 3 ballistic glazing options based on UL752 standards
  • Standard black laminate base
  • Automatic door closers
  • Allows only one door to be opened at a time
  • Full vision through passer
  • Wide range of sizes available
  • Delivered assembled and ready for installation

Applications

This passer is designed to help provide protection for areas that may be subject to ballistic attacks such as:

  • Financial institutions
  • Convenience stores
  • Pharmacies
  • Food service establishments
  • Law enforcement facilities
  • Parcel passer locations
  • Other “at risk” facilities

Construction

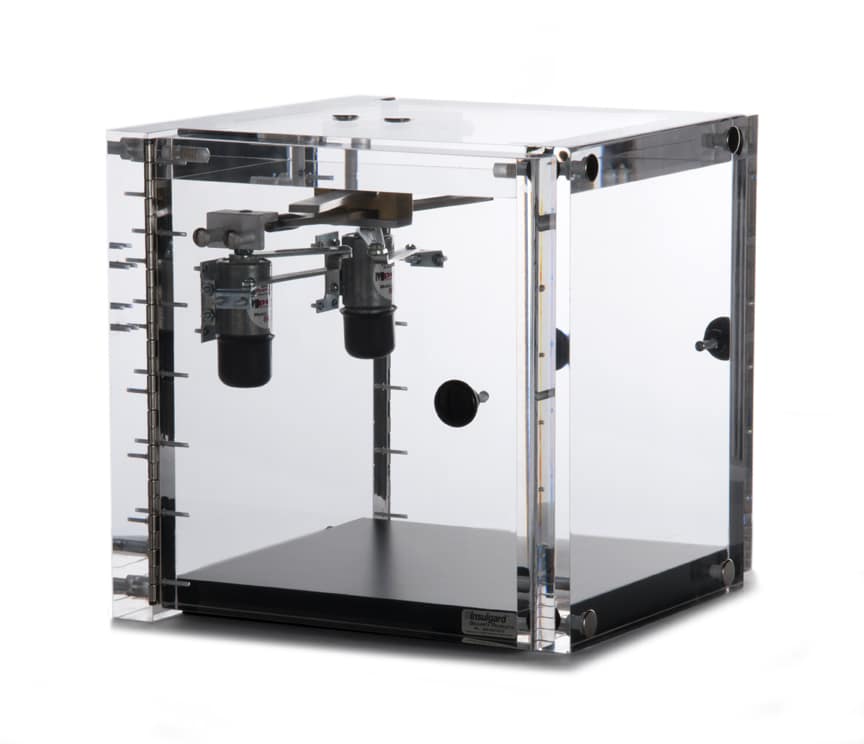

  • The PE Package Passer is boxed shaped and constructed from bullet resistant transparent acrylic or polycarbonate material.

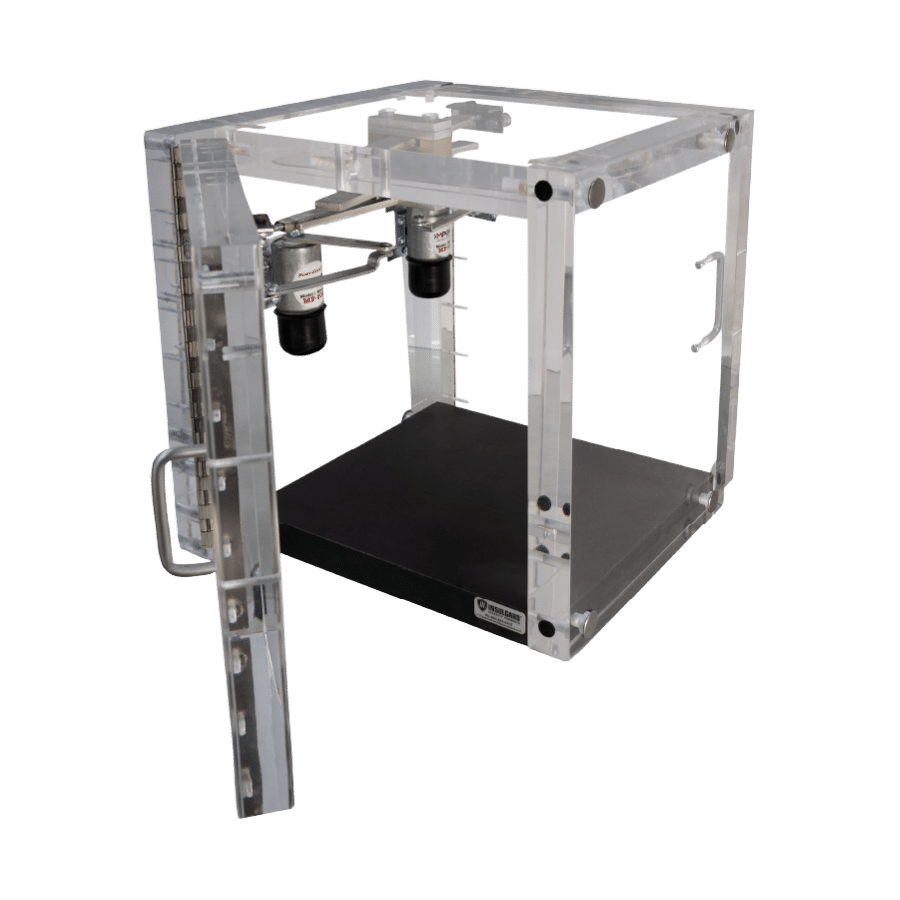

  • Hinged doors are controlled by a mechanical interlocking mechanism which allows only one door to be opened at a time.
  • The standard base is constructed from particle board with a black plastic laminate covering.
  • The unit is assembled using 1/4-20 steel machine screws.

Glazing

  • The glazing materials used are consistent with Underwriter Laboratories’ Standard 752 specified for bullet resistance.
  • Bullet resisting protection level shall be as specified by end user and consistent with threat level.

UL752 Ballistic Rating Options

  • UL Level 1: 1¼” Acrylic
  • UL Level 2: 13⁄8″ Acrylic
  • UL Level 3: 1¼” Lexgard® SP1250

For more information, see our SafeChange Bullet Resistant Package Passers and Drawers page or contact our team to learn more.
