Innovative glazing solutions for tornado and hurricane protection.

PRODUCT DESCRIPTION

Tor-gard® 30 glazing was tested in the STORMDEFEND TTH350 door system which is certified, listed, and labeled for use in tornado and hurricane safe rooms/storm shelters meeting FEMA P361-21 and ICC500-2020 standards.

TECHNICAL DATA

  • Dimensional Tolerance: +/-.250″
  • Maximum sheet size: 60″ x 96″
  • Light transmittance: 65%
  • U-Value: .58
  • Solar Heat Gain Coefficient: .67
  • Shading Coefficient: .78

PERFORMANCE TESTING

  • FEMA P361-21
  • ICC500-2020
  • UL752 Level 3 Bullet Resistance

OPTIONS

  • Tinted Glazing
  • Translucent Interlayers

INSTALLATION

  • Glazing to be installed in accordance with the guidelines set forth in the current edition of the GANA Glazing and Sealant Manuals.

WARRANTY (SHORT VERSION)

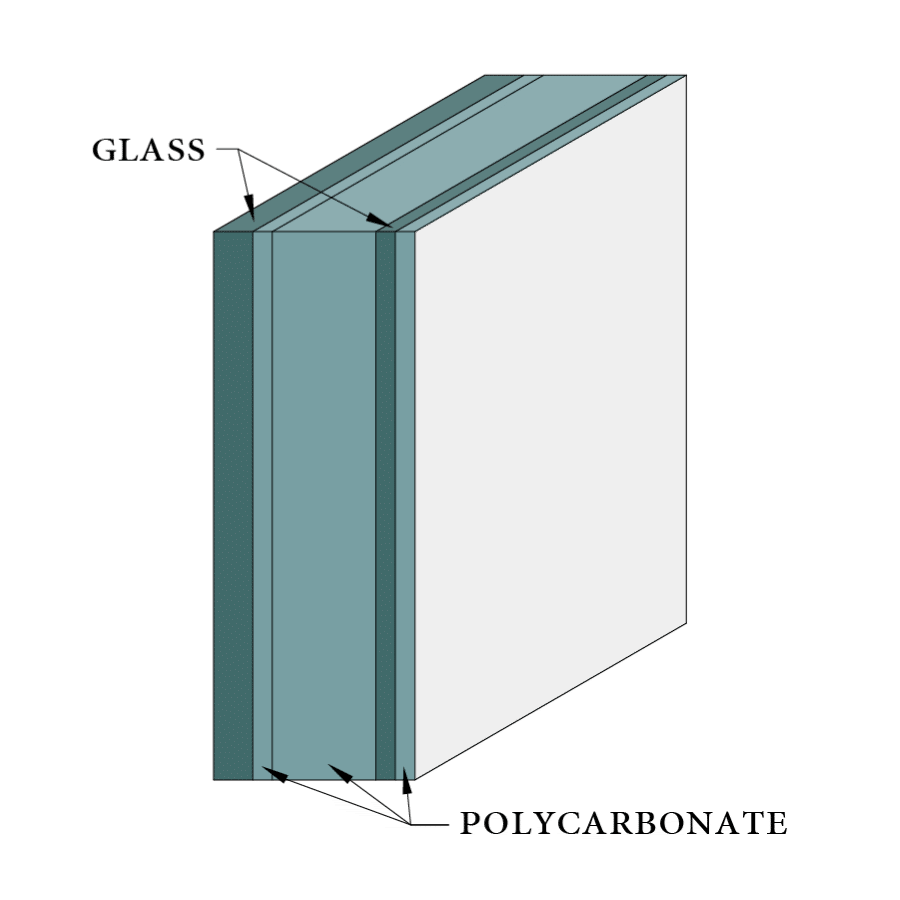

  • Global Security Glazing warrants TOR-Gard® Series of glass clad polycarbonate against defects in material and workmanship resulting in edge separation or delamination for a period of five (5) years from date of manufacture.
    (See Warranty Sheet for complete warranty information and specifications).

SPECIFICATIONS

  • nominal THICKNESS
    1.286″
  • WEIGHT
    10.84 lbs/sq ft
