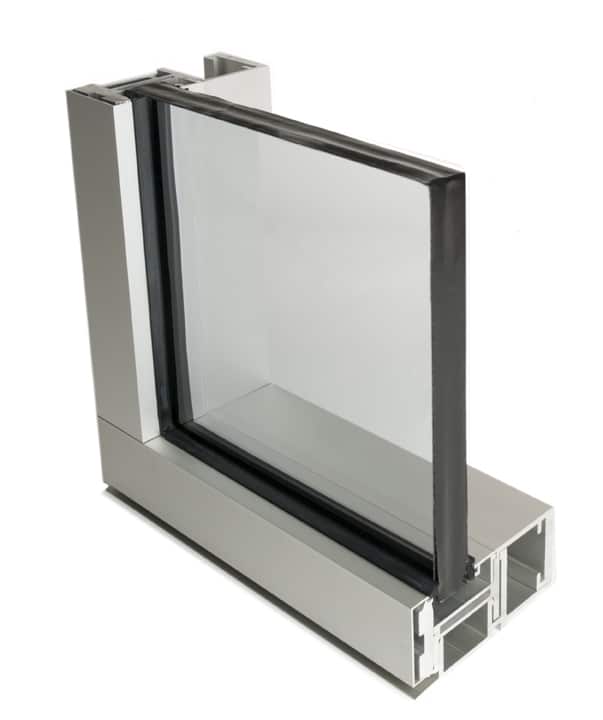

TH600 Architectural Aluminum Framing SystemCLICK TO ENLARGE

Details

Rating: UL 752 Level 1, 2, 3, 4, 5 & 8

This window system is designed and tested to provide protection to areas that may be subject to ballistic attack.

FEATURES

  • Meets UL752 levels 1, 2, 3, 4, 5 and 8 bullet resistance
  • Accepts various glazing materials from 11/4″ through 21/16″
  • Anodized or painted finishes
  • Completely fabricated and shipped fully assembled for easy installation
  • Designed for conventional installation and glazing methods

FRAME DIMENSIONS

  • 6″ framing system
  • Head, jamb, sill, mullion and intermediate 21⁄2″ x 6″

CONSTRUCTION

  • Components to be constructed from extruded aluminum 6061-T6 alloy temper or equivalent
  • Fasteners to be stainless steel type 302 or 304
  • Interior/Exterior glazing gaskets to be EPDM sponge and wedge
  • All joints and connections will be tight, providing hairline joints and true alignment of adjacent members.
  • Weep design to allow for water to exit the exterior at the sill and intermediate horizontal
  • Anchors to be fully concealed

APPLICATIONS

  • Law Enforcement
  • Schools
  • Government Buildings
  • Corporate Headquarters
  • Financial Institutions
  • Convenience Stores
  • Customer Service Centers

* Each end user should determine their ballistic threat and identify the appropriate product(s) to resist that threat.

TESTING / CERTIFICATION

  • Tested and listed by UL for bullet resistance meeting UL752 levels 1, 2, 3, 4, 5 and 8. Proof of testing can be found at www.ul.com under on-line listings
