OVERVIEW
BULLETBLOCK all glass laminate products can also be used in interior applications but they are better suited for exterior applications where the glass outer layer provides better protection against weathering and cleaning. Because these products contain glass they must be manufactured to size and cannot be stocked but the benefit of “made to size” is no yield loss from stock sheets. Also, because of their glass makeup, many of these products can be insulated providing much better thermal performance for exterior applications.
All bulletproof glass products are tested and certified to UL752 by Underwriters Laboratory and listed as such.
For more information about our bullet-resistant all-glass laminate products read our product data sheets below or contact Insulgard today.
PRODUCTS
BR-916
RATING:
- NIJ 0108.01 Level II
- HP White Level A
- ASTM F3561-22 Level 8 (glass test only)
- ASTM F1233-08 Class 1.4 Body Passage/ Class 1.3 Contraband
- 5-aa1 rated for 16 minutes
MATERIAL: All-glass laminate
NOMINAL THICKNESS: .527”
WEIGHT: 4.95 lbs/sq ft
BR-916 IG
RATING:
- NIJ 0108.01 Level II
- HP White Level A
- ASTM F3561-22 Level 8 (glass test only)
- ASTM F1233-08 Class 1.4 Body Passage/ Class 1.3 Contraband
- 5-aa1 rated for 16 minutes
MATERIAL: All-glass laminate
NOMINAL THICKNESS: 1.154″
WEIGHT: 8.22 lbs/sq ft
BR-113
RATING: UL 752 Level 1 – UL Listed BP844
MATERIAL: All-glass laminate
NOMINAL THICKNESS: 1.295″
WEIGHT: 16.05 lbs/sq ft

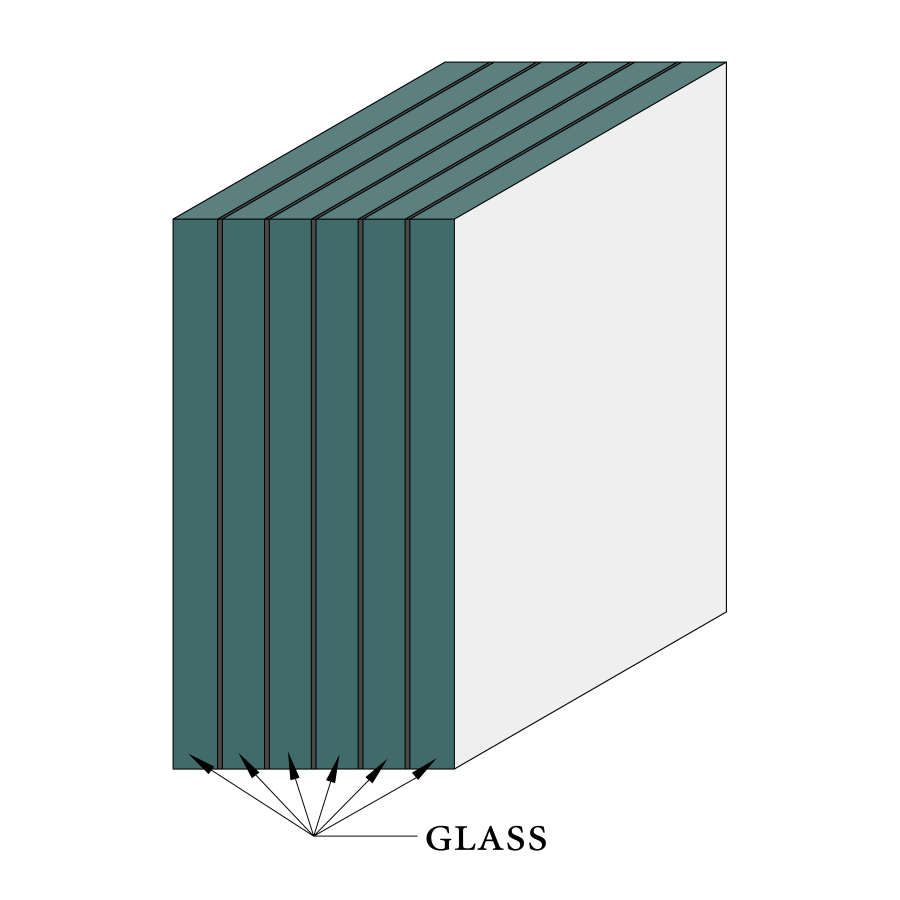

BR-155
RATING: UL 752 Level 2 – UL Listed BP844
MATERIAL: All-glass laminate
NOMINAL THICKNESS: 1.812”
WEIGHT: 22.51 lbs/sq ft

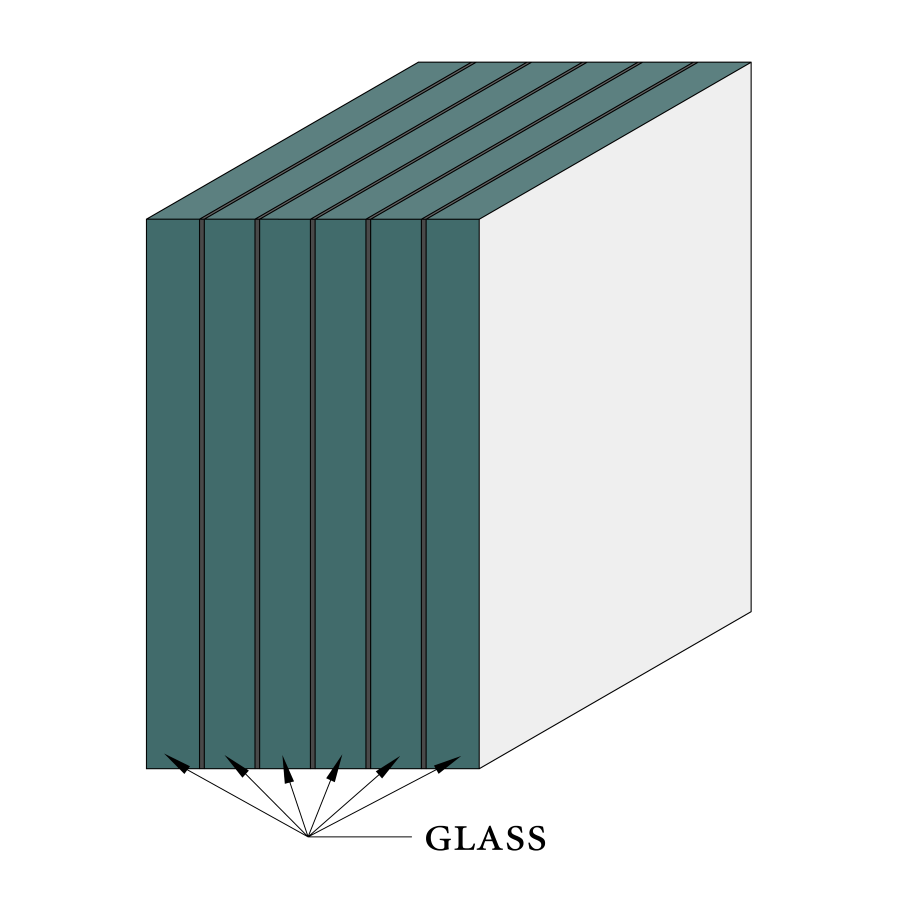

BR-233
RATING: UL 752 Level 3 – UL Listed BP844
MATERIAL: All-glass laminate
NOMINAL THICKNESS: 2.136”
WEIGHT: 26.38 lbs/sq ft
OPTIONS:
- Tinted glass
- Translucent interlayers
- Transparent mirror
- Low Iron glass
PERFORMANCE:
- .44 Magnum Lead Semi-Wadcutter Gas Checked
- No spall, No penetration
APPLICABLE STANDARDS:
- ANSI Z97.1
- CPSC 1 6 CFR 1201 (Category I and II)
- ASTM C 1036
- ASTM C 1172
